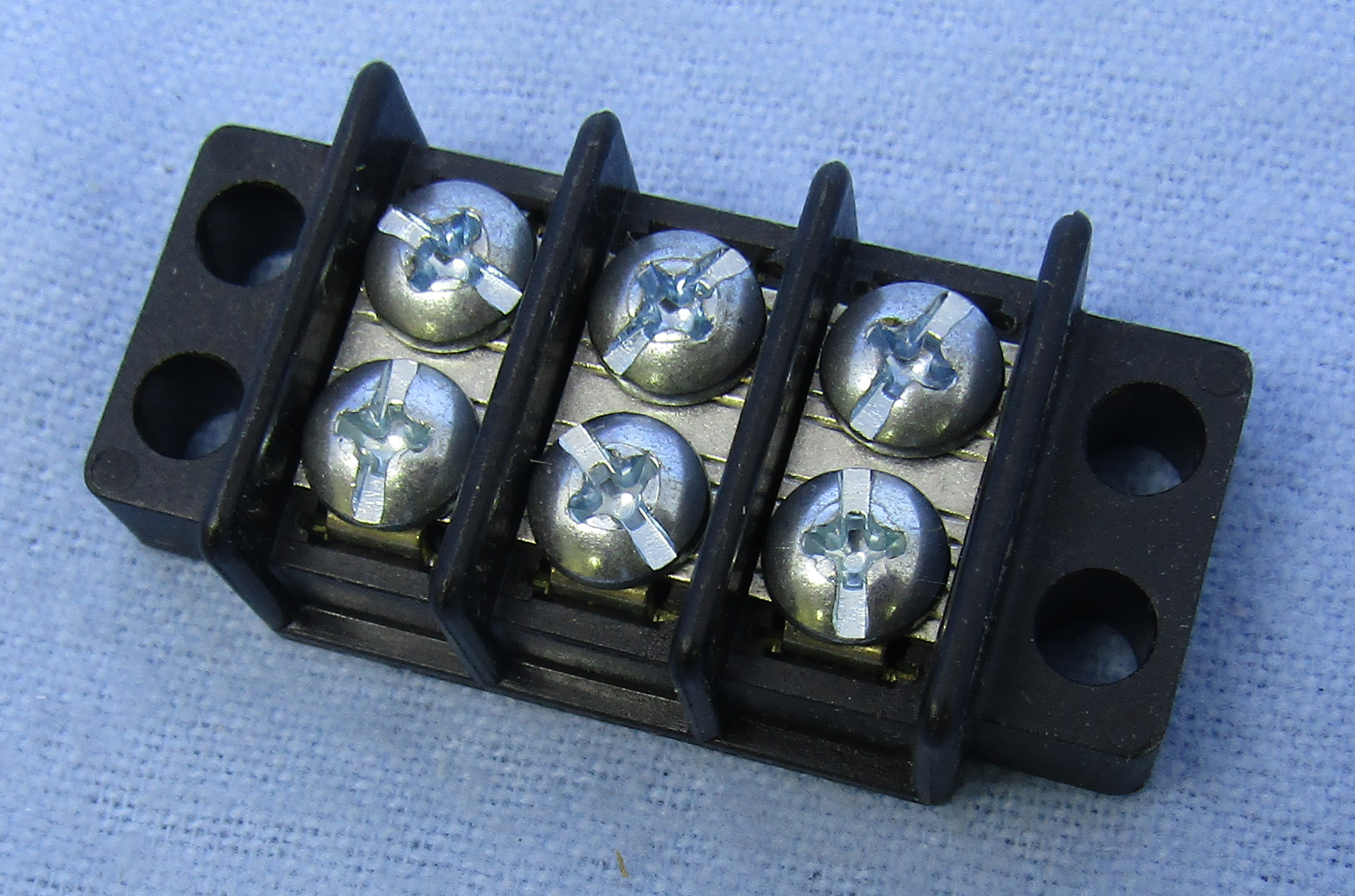

30 Amp Dual Row Terminal Block
Part No: 13-1403
UPC: 038975134033
UL Certified
Available in Bulk: 13-1403B
Product Specifications
| Product Attribute | Product Value |
|---|---|
| Weight | 0.65 oz |
| 3 poles, dimension: A=1.78", B=1.50", rating: 30A, 300V | |
| center spacing: .375" (9.52mm), wire size: #14-22AWG CU | |
| distance between barriers: .30" (7.62mm), #6-32 philslot screws | |
| terminal plating: tin over brass, screws: zinc plated steel | |
| operating temperature: 130?C (266?F) max., -40?C (-40?F) min. | |
| black molded base, UL rated 94VO thermoplastic |
WARNING: This product may expose you to chemicals including DEHP &/or Lead, which is [are] known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov/product.
